In the stable operation of the power system, cables play a crucial role. As the core indicator for measuring the conductivity of cables, the precise measurement of cable DC resistance is not only related to the efficiency of power transmission, but also the key to ensuring equipment safety. Today, let's talk about this topic and see how Wuhan UHV Power Technology Co., Ltd. has been deeply involved in this field.
What is cable DC resistance?
Simply put, the DC resistance of a cable refers to the degree to which its conductor obstructs the current when a stable DC current is applied to the cable. The smaller this value, the better the conductivity of the cable and the smaller the energy loss. Imagine, just like the thicker and smoother the water pipe, the easier it is for water to pass through, and the same goes for cables.
Factors affecting the DC resistance of cables
To accurately measure, understanding the influencing factors is the first step. There are mainly the following points:
Conductor material and cross-sectional area: Copper has a lower electrical resistivity than aluminum, and the larger the cross-sectional area of the conductor, the lower the resistance naturally.
Temperature: The resistance of metals increases with temperature, so it is necessary to pay attention to the ambient temperature when measuring.
Length: The longer the cable, the greater the total resistance.
Connection process: Oxidation of joints, weak crimping, etc. can increase local resistance.
With the help of professional tools, we can achieve twice the result with half the effort

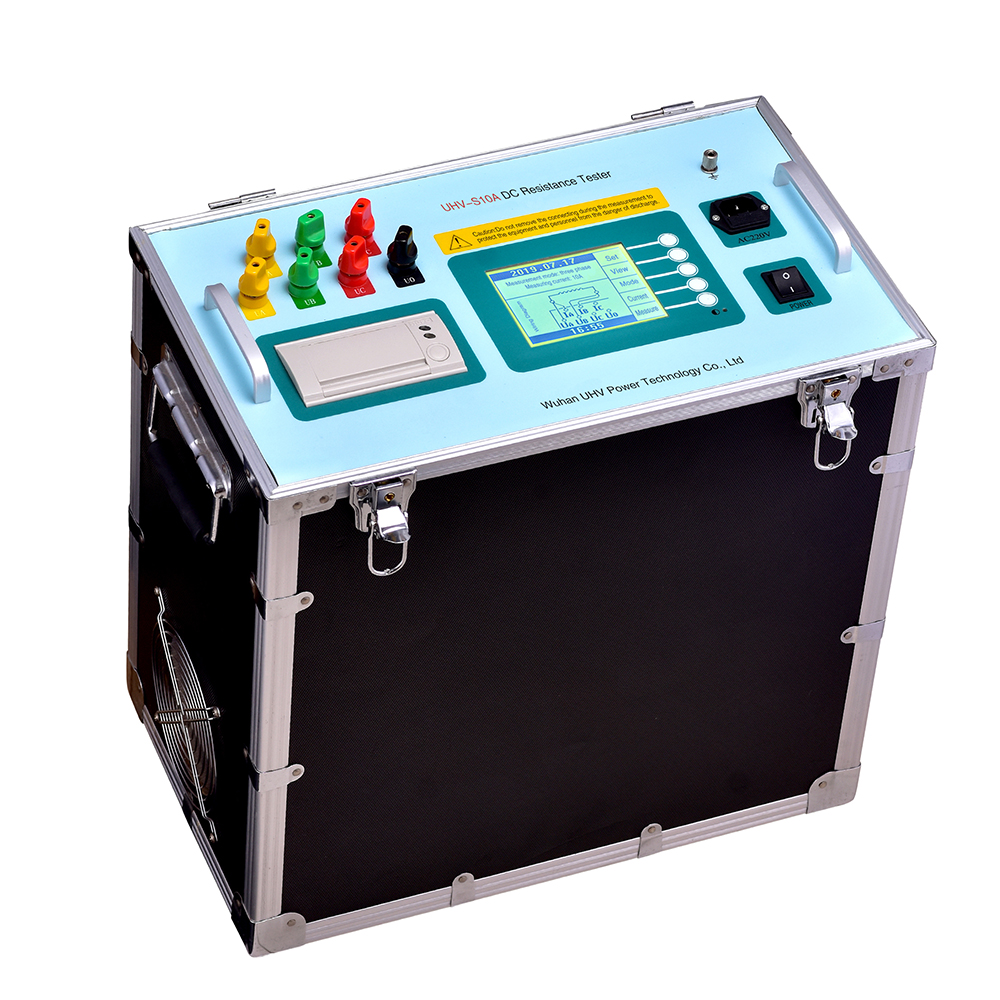

A reliable cable DC resistance tester is essential for accurate measurement. Professional instruments can provide stable high currents and accurately measure small resistance values. The equipment launched by Wuhan UHV Power Technology Co., Ltd. enjoys a high reputation in the industry for its high precision and stability, providing strong support for power inspection and maintenance.
How can we do better?
Standardized operation: Strictly follow the instrument manual and operating procedures for testing to ensure correct and stable wiring.
Multi point measurement: Measure different points of the cable and take the average to reduce single point errors.
Environmental monitoring: Record the ambient temperature during measurement for temperature correction and obtain the resistance value under standard conditions.
Regular testing: Incorporate the measurement of cable DC resistance into daily maintenance plans to promptly identify potential issues.
Relevance and Importance
The measurement of cable DC resistance, insulation resistance testing of cables, and DC resistance testing of transformers are all important components of power equipment testing. Accurate measurement helps to:
Evaluate the conductivity and current carrying capacity of the cable.
Promptly detect faults such as poor internal connections and aging conductors in cables.
Ensure the safe and stable operation of the power system, and avoid power outages caused by cable issues.
FAQ
Why use high current when testing cable DC resistance? Answer: Using high current can effectively overcome the interference of factors such as contact resistance and induced electromotive force, improve measurement accuracy, especially when measuring low resistance values.
Can the resistance values measured at different temperatures be compared? Answer: No, the resistance values at different temperatures cannot be directly compared. It is necessary to convert based on standard temperature (usually 20 ℃) in order to obtain comparable results.
What are the possible problems caused by excessive DC resistance in cables? Answer: Excessive resistance can easily cause cable heating, increase energy loss, reduce transmission efficiency, and even lead to safety accidents such as overheating and insulation damage.
Besides cables, which devices also need to test DC resistance? Answer: Low resistance equipment such as transformer windings, switch contacts, and circuit breaker dynamic and static contacts require regular DC resistance testing to evaluate their conductivity and contact reliability.
How to choose a suitable cable DC resistance tester? Answer: When choosing, factors such as test current size, measurement accuracy, portability, ease of operation, and brand reputation should be considered. The products of Wuhan UHV Power Technology Co., Ltd. have performed well in these aspects and are worth paying attention to.
